Support > Printer Settings

Voxelab Proxima 6.0 – 2K monochrome resin 3D-printing settings

Voxelab is a subsidiary brand of the Chinese 3D-Printers developer Flashforge. It aims to provides easier, lower cost yet reliable resin 3d-printing solutions for customers around the globe. Offering FDM 3D Printers, Resin 3D Printers and 3D slicing software. The Voxelab Proxima 6.0 resin 3D-Printer is equipped with a 2K monochrome LCD screen and offers a printing size of 130 (L) x 82 (W) x 155 mm(H).  Liqcreate would like to thank our network of partners of which we received optimized parameters for some resins. It is predicted that almost all resins can work as most also work on the Voxelab Proxima 6.0 resin 3D-printer! If you have any questions related to Liqcreate resins or you want to work with a non-optimized resin, reach out to us at info@liqcreate.com and our engineers can assist.



Voxelab Proxima 6.0 2K monochrome resin 3D-printing settings

Resin Layer thickness Exposure time (seconds) Base layer count Base layer exposure Lift Height (mm) Lift speed / retract speed (mm/min)
Bio-Med Clear 100 µm n/a
50 µm n/a
Strong-X 100 µm n/a
50 µm n/a
Deep Blue 100 µm n/a
50 µm 6,0 2 40 6 90 / 120
Premium White 100 µm n/a
50 µm n/a
Rigid Pro 100 µm n/a
50 µm n/a
Premium Model 100 µm n/a
50 µm n/a
Premium Tough 100 µm n/a
50 µm n/a
Wax Castable 100 µm n/a
50 µm n/a
25 µm n/a
Premium Flex* 100 µm n/a
50 µm n/a
Clear Impact 100 µm n/a
50 µm n/a
Stone Coal Black 100 µm n/a
50 µm n/a
ESD 100 µm n/a
50 µm n/a
Flame Retardant 100 µm n/a
HDT 50 µm n/a
Tough-X* 100 µm n/a
50 µm n/a
Flexible-X* 100 µm n/a
50 µm n/a
Elastomer-X* 100 µm n/a
50 µm n/a
Hazard Glow 100 µm n/a
Composite-X 100 µm n/a
50 µm n/a
Dental Model 100 µm n/a
Pro Beige 50 µm n/a
Dental Model 100 µm n/a
Pro Grey 50 µm n/a
Gingiva Mask 100 µm n/a
50 µm n/a
Premium Black 100 µm n/a
50 µm n/a

* Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.



About the Voxelab Proxima 6.0 2K monochrome resin 3D-printer.

voxelab proxima 6.0 2k monochrome liqcreate photopolymer resin dental jewelry wax tough

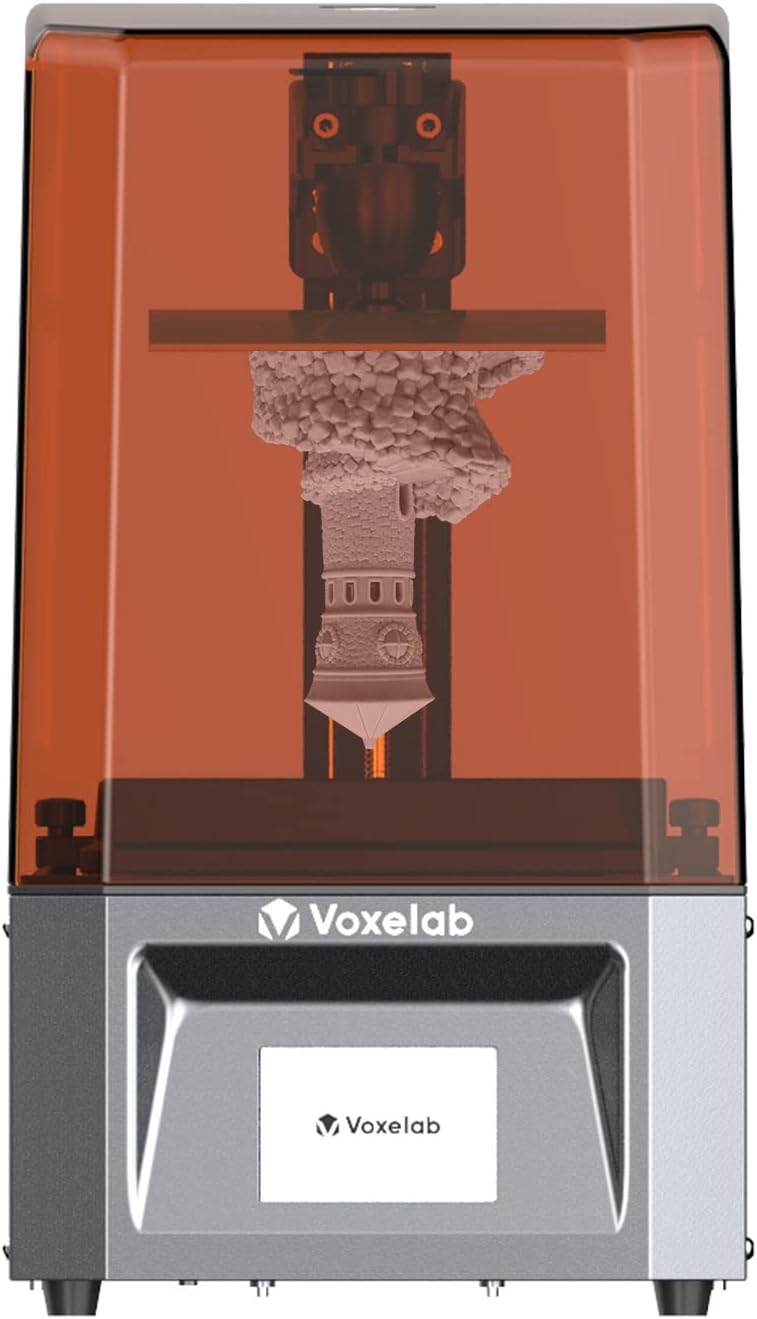

Photo by Voxelab: The new Voxelab Proxima 6.0 – 2K monochrome resin 3D-printer



Voxelab Proxima 6.0 resin 3D-printer key advantages

  • 1) Fast printing due to Voxelab’s proxima 6.0 –  6.1 inch monochrome LCD screen with 2K HD resolution. It has a four times longer in the service life and at least twice faster in printing speed than the ordinary RGB LCD 3D printers, which means higher printing efficiency, more stable performance and less maintenance
  • 2) Brand new light source structure provides excellent heat dissipation performance, high light output, even light output and no stains. work together with 2K mono LCD, the printing details and precision are greatly improved.Make sure every print comes out perfectly
  • 3) Proxima 6.0 supports both CHITU Slicing Software and VoxelPrint Slicing Software. VoxelPrint can quickly set up support and can change support parameters. VoxelPrint 3D printer provides dimension compensation mechanism, effectively reduces the error caused by resin shrinkage. VoxelPrint also provides internal honeycomb support to prevent collapse. The cutting function also provides a different printing experience
  • 4) Fully assembled, out of the box.Quick start printing within 5 minutes after leveling the building platform. The package does not include 3D printer resin, but supports 405nm resins. We recommend Voxelab official resins, much cheaper and very stable

If you have any questions related to Liqcreate 3D-printing resins on the Voxelab Proxima 6.0 or other resin based 3D-printer. Send us an e-mail at info@liqcreate.com and our engineers will support to dial-in the requested Liqcreate resin.
