Wanhao is a chinese manufacturer of desktop FDM and LCD/MSLA based 3D-printers. Their Wanhao Duplicator D7 was one of the first available desktop LCD printers for home users. After the launch of the Duplicator D8 it now offers the Wanhao CGR resin 3D-printer. The wanhao CGR has a 4K LCD screen with a build size of 192*120*180mm and pixel size of 75 micron. Settings are optimized for some Liqcreate resins are available for the Wanhao CGR. The Liqcreate Premium range is especially developed for printing on these type of MSLA / LCD 3D-printers, leading to shorter exposure times. Other resins can also be processed with higher exposure times. Contact us if you need support or have any questions.
Wanhao Duplicator D11 CGR resin 3D-printing settings.
Resin | Layer thickness | Curing time (seconds) | Remark |
Deep Blue | 100 µm | n/a | |
50 µm | n/a | ||
Stone Coal Black | 100 µm | n/a | |
50 µm | n/a | ||
Premium White | 100 µm | n/a | |
50 µm | n/a | ||
Premium Black | 100 µm | n/a | |
50 µm | 4,0 | 2 burn-in layers of 40 seconds | |
Premium Model | 100 µm | n/a | |
50 µm | n/a | ||
Premium Flex | 100 µm | n/a | |
50 µm | n/a | ||
Premium Tough | 100 µm | n/a | |
50 µm | n/a | ||
Clear Impact | 100 µm | n/a | |
50 µm | n/a | ||
Strong-X | 100 µm | n/a | |
50 µm | n/a | ||
Tough-X | 100 µm | n/a | |
50 µm | n/a | ||
Flexible-X | 100 µm | n/a | |
50 µm | n/a | ||
Hazard Glow | 100 µm | n/a | |
50 µm | n/a | ||
Support
Do you need any help with 3D printing our SLA, DLP or LCD resins? We can help you! Just look for the question you have below. If you can’t find it, let us know by contacting us!
Printer Settings →
About the Wanhao Duplicator D11 CGR resin 3D-printer.

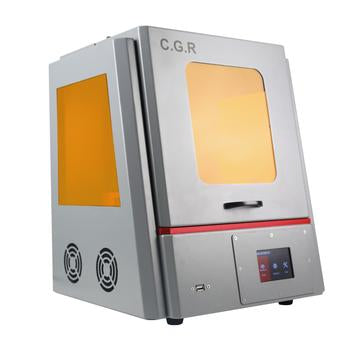

Image by Wanhao: Showcasing the Wanhao Duplicator D11 CGR resin 3D-printer.
Wanhao Duplicator D11 CGR resin 3D-printer specifications.
- – Technology: Direct UV Printing/mSLA/LCD (resin)
- – Build Volume: 190x120x180
- – Maximum printing Speed: 40 mm / h (resin dependant)
- – Layer Thickness: 10-200 microns
- – The Wanhao Duplicator D11 CGR has a resolution of 75 microns
- – Power requirement: 100 – 240 V / 1.5 A / 60 Hz / 60 Watt
- – Software: Wanhao Slicer Workshop Mango3D
- – Compatible with 405nm photopolymer resin
Contact us if you have any questions or when you need help with settings for Liqcreate resn on the Wanhao duplicator D11 CGR or other resin based 3D-printers.
