The Anycubic Photon Mono is a 2K monochrome LCD resin 3D-printer. The Photon Mono is completely open for 3rd party resin. Due to its monochrome screen, even our DLP and SLA resins can be printed with relatively good printing speed. Contact us if you have any questions. More information about the different Anycubic printers. And how the Photon Mono compares to the regular Photon, Photon SE and Photon Mono X is explained here.
Download the Chitubox Anycubic Photon Mono resin parameters.
Anycubic Photon Mono resin 3D-printing parameters
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height (mm) | Lift speed / retract speed (mm/min) | Off-time / bottom (seconds) |
| Deep Blue | 100 µm | 5,5 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 4,0 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Stone Coal Black | 100 µm | 5,5 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 4,0 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Premium White | 100 µm | 2,5 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 1,8 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Premium Black | 100 µm | 4,5 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 3,5 | 3 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Premium Model | 100 µm | 2,0 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 1,7 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| (dental)* | 50 µm | 1,4 | 2 | 50 | 6 | 60 / 90 | 2,0 / 3,0 |
| Premium Tough | 100 µm | 6,7 | 1 | 50 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | n/a | ||||||
| Wax Castable | 100 µm | 3,5 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 3,0 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Premium Flex* | 100 µm | 4,7 | 2 | 40 | 10 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 3,5 | 1 | 40 | 10 | 90 / 240 | 1,0 / 3,0 | |
| Clear Impact | 100 µm | 8,0 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 7,0 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Strong-X | 100 µm | 6,5 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 5,0 | 3 | 70 | 6 | 90 / 240 | 1,0 / 3,0 | |
| ESD | 100 µm | 7,0 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 5,5 | 3 | 50 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Tough-X* | 100 µm | 14,0 | 2 | 80 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 12,0 | 2 | 60 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Flexible-X* | 100 µm | 15,0 | 2 | 80 | 10 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | n/a | ||||||
| Elastomer-X* | 100 µm regular | 16,0 | 2 | 60 | 10 | 90 / 240 | 1,0 / 3,0 |
| 50 µm regular | 14,0 | 2 | 60 | 10 | 90 / 240 | 1,0 / 3,0 | |
| 100 µm thin | 19,0 | 2 | 60 | 10 | 90 / 240 | 1,0 / 3,0 | |
| 50 µm thin | 16,0 | 2 | 60 | 10 | 90 / 240 | 1,0 / 3,0 | |
| Hazard Glow | 100 µm | 7,0 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 |
| Composite-X | 100 µm | 7,5 | 2 | 75 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 7,0 | 2 | 70 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Flame Retardant | 100 µm | 4,2 | 3 | 50 | 6 | 90 / 240 | 1,0 / 3,0 |
| HDT | 50 µm | 3,5 | 3 | 50 | 6 | 90 / 240 | 1,0 / 3,0 |
| Bio-Med Clear | 100 µm | 5,5 | 2 | 35 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 4,5 | 2 | 25 | 6 | 90 / 240 | 1,0 / 3,0 | |
| Dental Model Pro Beige | 50 µm | 4,0 | 2 | 40 | 6 | 90 / 240 | 1,0 / 3,0 |
| Dental Model Pro Grey | 50 µm | 4,0 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 |
| Gingiva Mask | 100 µm | 14,0 | 2 | 30 | 6 | 90 / 240 | 1,0 / 3,0 |
| Rigid Pro | 100 µm | 5,0 | 2 | 50 | 6 | 90 / 240 | 1,0 / 3,0 |
| 50 µm | 3,5 | 2 | 40 | 6 | 90 / 240 | 1,0 / 3,0 |
* Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.
**Print dental models on supports for better quality models

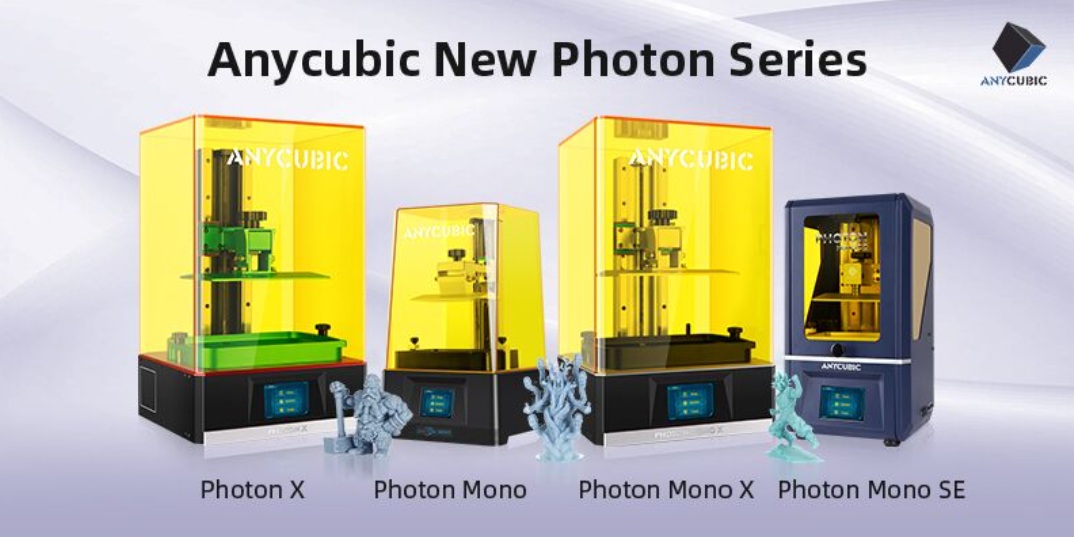

Image by 3Dprintingindustry.com and Anycubic: the line-up of Anycubic Photon resin 3D-printers.
Anycubic Photon Mono, a 2K monochrome LCD resin 3D-printer
The Anycubic Photon Mono has a 6 inch monochrome LCD display. With this new technology, the Photon Mono prints at unbelievable printing speeds, so that it only takes a few seconds per layer The monochrome LCD is also thermally stable and has a much longer service life than conventional LCD displays. You can print with it for over 2000 hours with the Anycubic Photon Mono resin 3D-printer. In addition, thanks to the larger LCD display, the Anycubic Photon Mono also has a slightly larger installation space of 130 x 80 x 165 mm.
New matrix light source
The new matrix light source has been redesigned and consists of several UV LED lights that have a more even exposure to cure the resin. This not only improves accuracy for the Anycubic Photon Mono, but also enables shorter exposure times for the resin and better heat dissipation.
