Elegoo launched the new Saturn 4 in two versions, the regular one and the Saturn 4 Ultra. The Elegoo Saturn 4 Ultra combines excellent 12K precision with superior usability. The Saturn 4 Ultra is equipped with a 10-inch monochrome LCD screen. The 12K screen has 11520 x 5120 pixel resolution with a non-square pixel size of 19 x 24 μm in XY , delivering detail and high-resolution while still having an acceptable build plate of 219 x 123 x 220 mm (X x Y x Z). Elegoo Saturn 4 Ultra resin settings can be found in the link. In this article you can find accuracy parameters to print accurate dental and engineering parts with the Elegoo Saturn 4 ultra and Liqcreate resin. If you have any questions related to Liqcreate resins, reach out to us at info@liqcreate.com
3D-printing accurate dental & engineering – Saturn 4 Ultra (updated monthly)

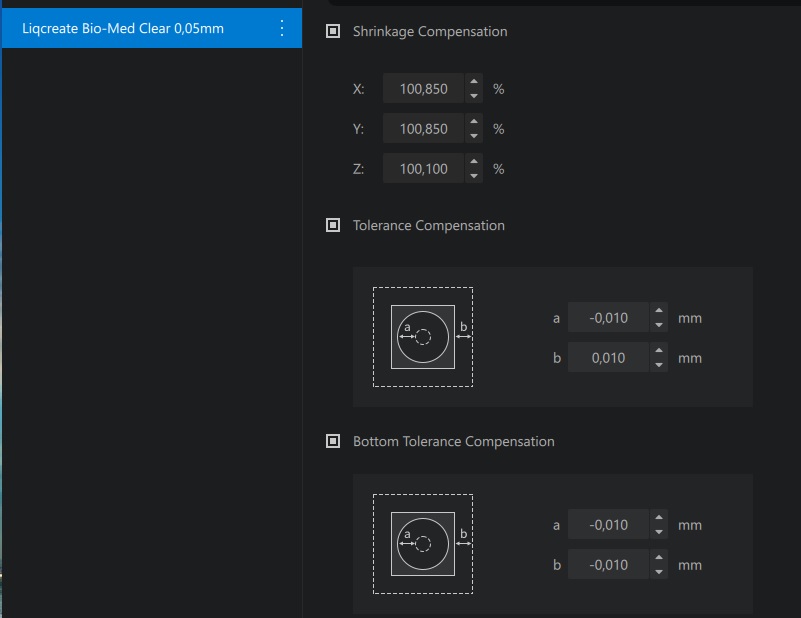

Below you can find accuracy parameters for a range of Liqcreate resins on the Elegoo Saturn 4 Ultra:
Dental Model Pro Grey resin accuracy parameters:
Premium Model resin accuracy parameters:
Dental Model Pro Beige resin accuracy parameters:
other resins will follow in the coming weeks.
About the Elegoo Saturn 4 Ultra resin 3D-printer.
Image by Elegoo: The Elegoo Saturn 4 Ultra a 12K MSLA resin 3D-printer
Elegoo Saturn 4 Ultra resin 3D-printer specifications.
| Saturn 4 | Saturn 4 Ultra | |
| Printing technology | MSLA | |
| Printer size | 327.4 x 329.2 x 548 mm | |
| Printer weight | 13.5kg | 14.5kg |
| Build volume | 218.88×122.88x220mm | |
| Display | 10-inch 12K monochrome LCD | |
| XY resolution | 19 x 24 µm (11520 x 5120 pixels) | |
| Light source | COB + Fresnel collimation lens, 405 nm | |
| Z-axis accuracy | 0.02mm | |
| Max. print speed (resin dependant) | 70 mm/h | 150 mm/h |
| Device display | 3.5-inch resistive touchscreen | 4-inch capacitive touchscreen |
| Interfaces | USB offline printing | USB, WiFi |
| Slicers | CHITUBOX, Voxel Dance Tango | CHITUBOX |
Contact us if you have any questions or when you need help with settings for Liqcreate resin with the Elegoo Saturn series or other resin based 3D-printers.
