The Asiga Pro 4K and Asiga Pro 4K XL are high power DLP 3D-printer and completely open for 3rd party resins. Settings are optimized for most Liqcreate materials, like Strong-X, Clear Impact, Wax Castable, Premium Model, and many other resins. Download resin 3D-print parameters (.ini file) at the Asiga website or download our .ini setting file and start printing today with your Liqcreate resins!
Asiga Pro 4K & Asiga Pro 4K XL compatible Liqcreate resins
| Resin | Layer thickness | Compatible? |
| Deep Blue | 50 / 70 / 100 µm | Yes |
| Stone Coal Black | 50 / 70 / 100 µm | Yes |
| Premium White | 50 / 70 / 100 µm | Yes |
| Premium Black | 50 / 70 / 100 µm | Yes |
| Premium Model | 50 / 70 / 100 µm | Yes |
| Wax Castable | 50 / 70 / 100 µm | Yes |
| Premium Flex | 100 µm | Yes only at 100 µm resolution |
| Premium Tough | 50 / 70 / 100 µm | Yes |
| Clear Impact | 50 / 70 / 100 µm | Yes |
| Strong-X | 50 / 70 / 100 µm | Yes |
| Tough-X | 50 / 70 / 100 µm | Yes |
| Flexible-X | 100 µm |  Yes only at 100 µm resolution |
| Hazard Glow | 50 / 70 / 100 µm | Not Tested |
| Composite-X | n/a | Not compatible |
| Elastomer-X | n/a | Not compatible |
| Dental Model Pro Beige | 50 / 70 / 100 µm | Yes |
| Dental Model Pro Grey | 50 / 70 / 100 µm | Yes |
| Bio-Med Clear | 50 / 100 µm | Yes |
| Gingiva Mask | 50 / 70 / 100 µm | Yes |
| ESD | 50 / 100 µm | Yes |
| Rigid Pro | 50 / 100 µm | Yes |
About the Asiga Pro 4K resin 3D-printer
The Asiga PRO 4K combines the latest 4K imaging technology with Asiga’s Smart Positioning System (SPSâ„¢) to produce a build volume 3x larger than Asiga’s desktop 3D printer. Precision, reliability, speed and an Open Material System all come as standard to provide production continuity for the most demanding digital manufacturing environments. The Asiga PRO 4K resin 3D-printer incorporates pixel shifting technology to increase part accuracy and surface definition without affecting printing time. 4K mode is a standard feature on every Asiga PRO 4K. Native pixel mode is also available for scientific applications requiring deterministic pixel behaviour. At a pixel size of 46µm in 4K mode, the platform size is 176.5 x 99 x 200mm. While an even bigger build platform of 217 x 122 x 200mm can be realized at a pixel size of 56µm in 4K mode.
About the Asiga Pro 4K XL resin 3D-printer
Using pixel shifting technology, the Asiga 4K mode reduces pixel size and increase part accuracy and resolution without impacting build area or printing time. Visit the Asiga website and specification tab for pixel sizing. Accurate layer formation is the key to any successful 3D printing solution and our SPS technology alongside our internal radiometer provide finite layer control required to achieve production repeatability and system reliability in any industry / environment.
The Asiga Pro 4K XL is bigger in z-axis compared to the original Asiga Pro 4K. To manufacture end-use parts, prototypes, large anatomical models or jigs & fixtures on the PRO 4K XL. Super-sized for your next large scale application with a standard Z-distance of 400mm.

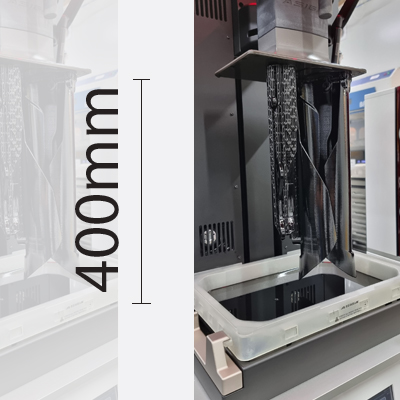

Image by Asiga: The Z-axis of the new Asiga Pro 4K XL resin 3D-printer reaches 400mm!
How to import ini files in the Asiga Max and Pro 4K resin 3D-printers?
This video by Whip Mix corperation will explain how to import an .ini files step by step in your Asiga resin 3D-Printer.
Support
Do you need any help with 3D printing our SLA, DLP or LCD resins? We can help you! Just look for the question you have below. If you can’t find it, let us know by contacting us!
Printer Settings →
Find Asiga Pro 4K and Asiga Pro 4K XL compatible resins
Liqcreate Strong-X
Liqcreate Strong-X is one of the strongest photopolymer resins available in the market. Its flexural strength of 135MPa is comparable to industry’s leading dual-cure cyanate ester resins. Liqcreate Strong-X is easy to use on open SLA and DLP 3D-printers in the range of 385 – 405nm, like the Asiga Pro 4K and Asiga Max UV. Liqcreate Strong-X only requires UV post-curing. This material has excellent features like high strength, high stiffness and high temperature resistance which makes it ideal for injection molding and heavy duty applications.
Key benefit
·       High strength ·       High temperature resistance ·       Low odor ·       Low shrinkage ·    High quality on the Asiga Max and Asiga Pro 4K |
Liqcreate Clear Impact
Liqcreate Clear Impact is an optically clear photopolymer resin for SLA and DLP technologies in the range of 385 – 405nm, like the Asiga Pro 4K and Asiga Max UV. Parts created with Liqcreate Clear Impact are perfectly transparent, slightly flexible and have an excellent impact resistance. The high toughness of the material makes it ideal for the production of functional parts which are repeatedly exposed to stress. Low water absorption and weather resistance makes it perfect for outdoor applications.
Key benefit
·       Optically clear ·       Excellent impact resistance ·       Good chemical resistance ·       Low yellowing ·    High quality on the Asiga Max and Asiga Pro 4K |
Liqcreate Wax Castable
Liqcreate Wax Castable is a wax-based resin, perfect for manufacturing jewelry, dental and industrial parts using the direct investment casting method. Liqcreate Wax Castable is easy to use on open LCD/MSLA, DLP and laser based 3D-printers in the range of 385 – 420nm, like the Asiga Pro 4K and Asiga Max UV. 3D-printed parts from this material captures intricate features and show crisp details. This wax-based material offers smooth surfaces with clean burnout for a reliable casting process. Create custom made elegant organic geometries according to your preferences with excellent casting for positive and negative engravings.
Key benefit
·       High precision ·       Wax based ·       Clean & ash-free burnout ·       Excellent casting of engravings ·    High quality on the Asiga Max and Asiga Pro 4K |
Liqcreate Premium Model
Liqcreate Premium Model is a matte, opaque skin/peach colored photopolymer resin. Its matte color accentuates depth and detail in your dental models, which accommodates a perfect view on undercuts in 3D-printed models. 3D-printed parts from this material have exceptional dimensional stability and low shrinkage during printing. Liqcreate Premium Model is easy to use on open LCD and DLP 3D-printers in the range of 385 – 420nm, like the Asiga Pro 4K and Asiga Max UV. This material has excellent properties like low shrinkage and low odor, accuracy and dimensional stability, making it perfect for the production of dental models.
Key benefit
·       Excellent dimensional stability ·    High detail ·       Temperature resistant for aligner production ·       Low shrinkage ·    High quality on the Asiga Max and Asiga Pro 4K |
