In 2011 Asiga launched the world’s first LED based DLP 3D printer and started the affordable desktop stereolithography revolution which changed digital manufacturing forever. Asiga won the MJSA’s 2012 Thinking Ahead award for best new technology and gained international recognition for the innovations contained within the Pico, MAX and PRO 4K platforms that continue to lead their respective categories to this day. In this article you can find settings developed by Liqcreate partners for the Asiga Freeform PICO 3D-printer. If you are looking for other asiga settings, have a look here.

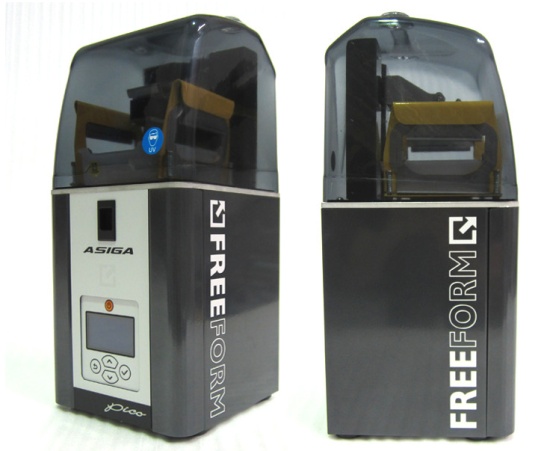

Image by 3DNatives and Asiga: The Asiga Freeform Pico resin 3D-printer.
Asiga Freeform PICO compatible Liqcreate resins
At the time of writing only one parameter is avaiable for the Asiga Freeform PICO for Liqcreate Composite-X. The .ini file to import all parameters in the Asiga composer is available, send us an e-mail at info@liqcreate.com to request this parameter file. Technically most other Liqcreate resins can also work on the Asiga Pico printer, but have not been optimized. If you have an Asiga Freeform PICO and want to work with a non-optimized resin, feel free to contact us at info@liqcreate.com and we can guide you through optimization.
About the Asiga Freeform PICO resin 3D-printer
Freeform Pico / PicoPlus Highest resolution resin 3D-printer with real XY resolution up to 27 microns and a quarter micron (250 nanometers ) Z-resolution, Pico is one of the  highest resolution resin 3D-printer when released.
| Model | Pico |
Pico Plus 39 |
Pico Plus 33 |
Pico Plus 27 |
| Build size XYZ in mm | 40x30x76 | 50 x 3 1.2 x 76 | 4 2.5 x 26.5 x 76 | 35 x 21.8 x 76 |
| XYÂ pixel size in microns | 39 | 39 | 33 | 27 |
| Accuracy | 0.5 pixels/cm | |||
| Layer thickness in Z | Adjustable in 1 µm steps | |||
| Light source | UV LED | |||
| File Format | . STL.SLC | |||
| Printer program | Composer (PC, Mac, Linux) as a gift for Asiga customers | |||
| Connection | 10/100Â Ethernet | |||
| Printer Size / Weight | 22 x 22.5 x 50.5 cm / 10 kg | |||
| Size / Package Weight | 32 x 32 x 70 cm / 15 kg | |||
Contact us if you have any questions or when you need help with settings for the Asiga Freeform PICO DLP 3D-printing or other resin based 3D-printers.
