Anycubic launched the Photon M3 series already some time ago. This mid-level M3 printer has a 6K resolution, competing directly with its previously launched Anycubic Photon Mono X 6K in both specifications as price. The Photon M3 Plus has an LCD screen with 5760 x 3600 pixels, exactely the same as the Photon Mono X 6K. The build volume of the Anycubic Photon M3 Plus is 194 * 122 * 245 mm (L * W * H), with a pixel size of just 33 micron. The build plate is laser-engraved, which is supposed to improve adhesion of the base layer to the build plate. Additionally an upgraded matrix light engine is present in the Anycubic Photon M3 Plus. In the link you find resin 3D-printing parameters with Liqcreate resin on the Anycubic Photon M3 Plus.
Find Anycubic compatible resin
Precise dental & engineering resin 3D-printed models with the Anycubic Photon M3 Plus resin

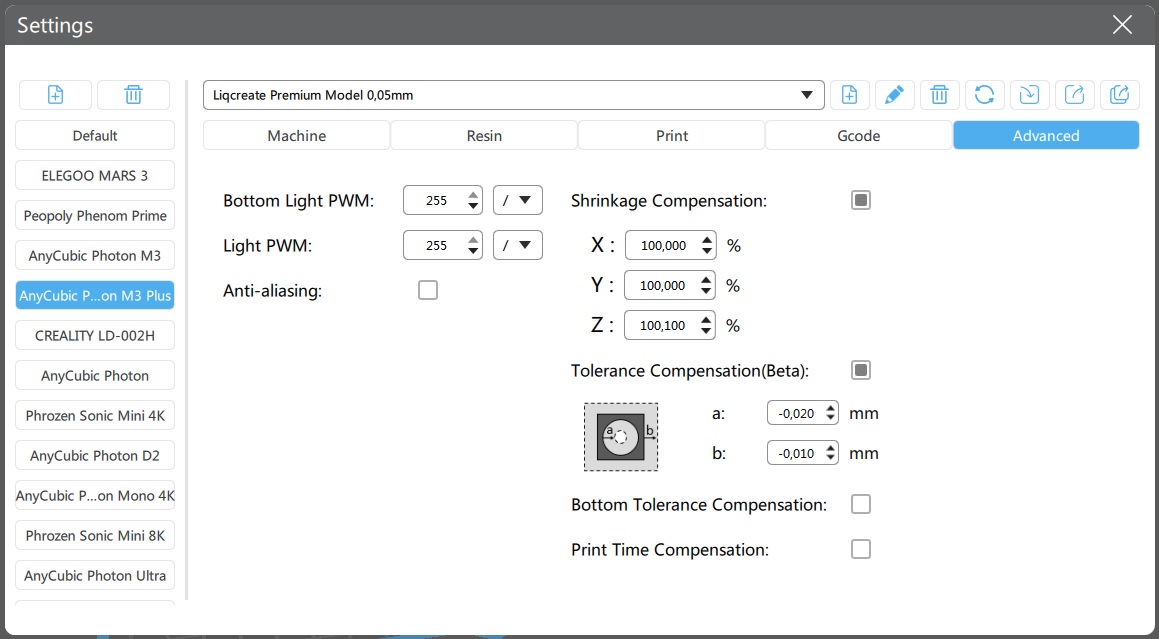

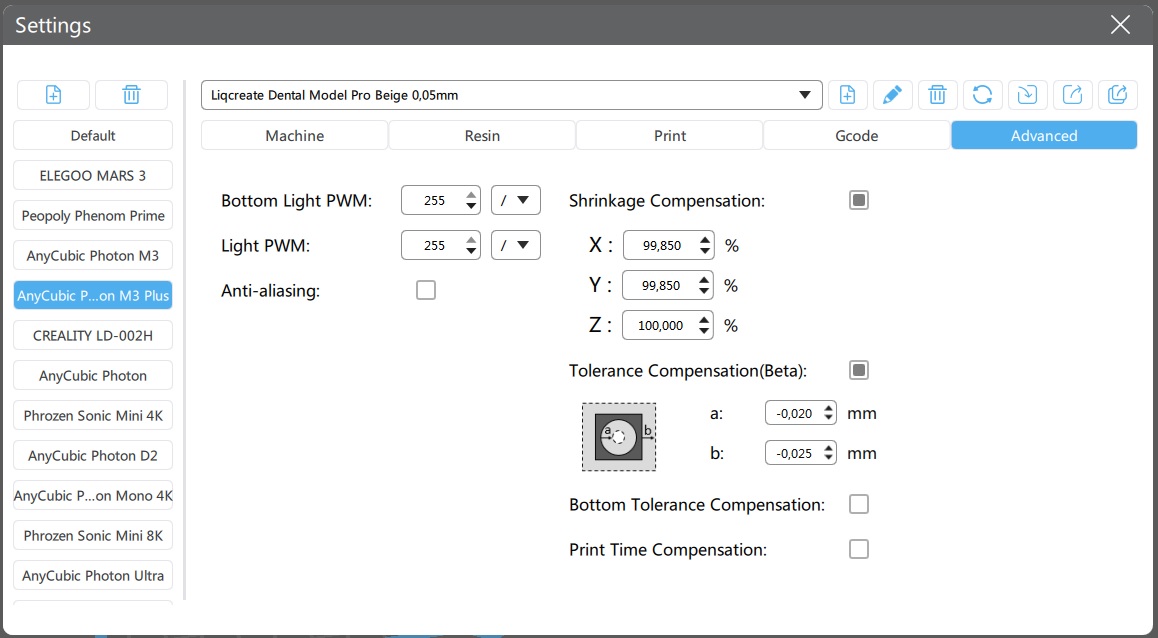

Below you can find shrinkage and offset values for the tested Liqcreate resins on the Anycubic Photon M3 Plus resin 3D-printer to print accurate engineering and dental models.
Anycubic Photon M3 Plus 3D-printer specifications.
- – 9.25″ 6K monochrome display.
- – Large resin 3D-printer with a build volume: of 197 x 122 x 245 mm.
- – Smart resin filling.
- – Laser engraved print platform.
- – LighTurbo Matrix light source.
- – Large build volume: 197 x 122 x 245 mm (L x W x H).
- – Device size: 290 x 360 x 475 mm (L x W x H).
- – Dimensional accuracy of 34 µm.
- – Print speeds of up to 100 mm/h (resin dependant).
- – LCD screen with 350:1 contrast.
- – Anycubic LighTurbo Matrix light source with LED beads.
- – Anti-scratch film for LCD screen
Contact us if you have any questions related to Liqcreate resin. Or when you need help with settings for the Anycubic Photon M3 Plus or other resin based 3D-printers when working with Liqcreate resin.
