Anycubic is one of the manufacturers of entry-level LCD resin 3D-printers and took another leap in resin 3D-printing. Just when all the manufacturers are switching to the larger 8K resolution LCD screens. Anycubic announced the first ever 12K resin 3D-printer named the Anycubic Photon Mono M5s. In the linked article you find Liqcreate 3D-printing resin parameters for the Anycubic Photon Mono M5s. In this article you can find shrinkage and offset parameters. This is needed to print the most accurate dental models, engineering parts or jewelry wax castings. Send an e-mail to us at info@liqcreate.com if you need help with Liqcreate resins.

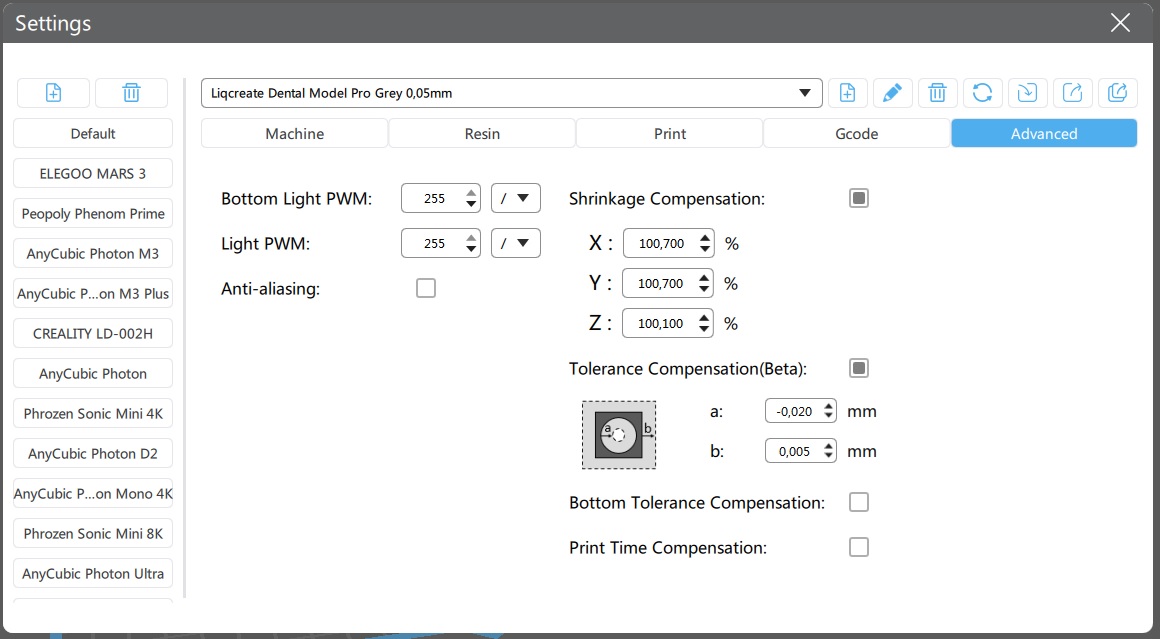

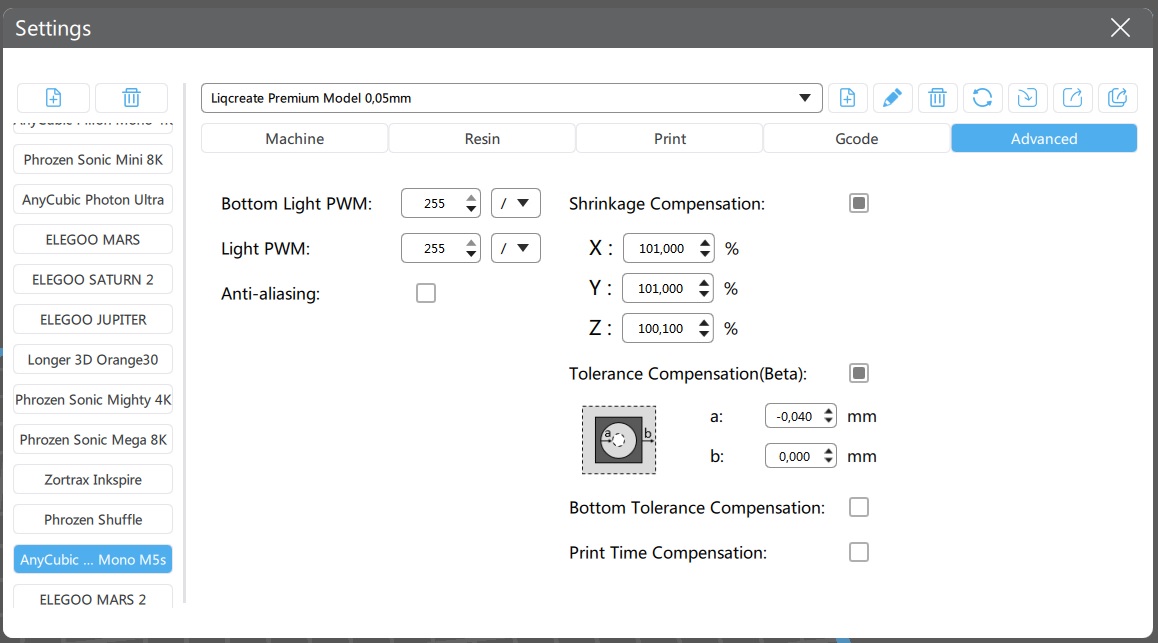

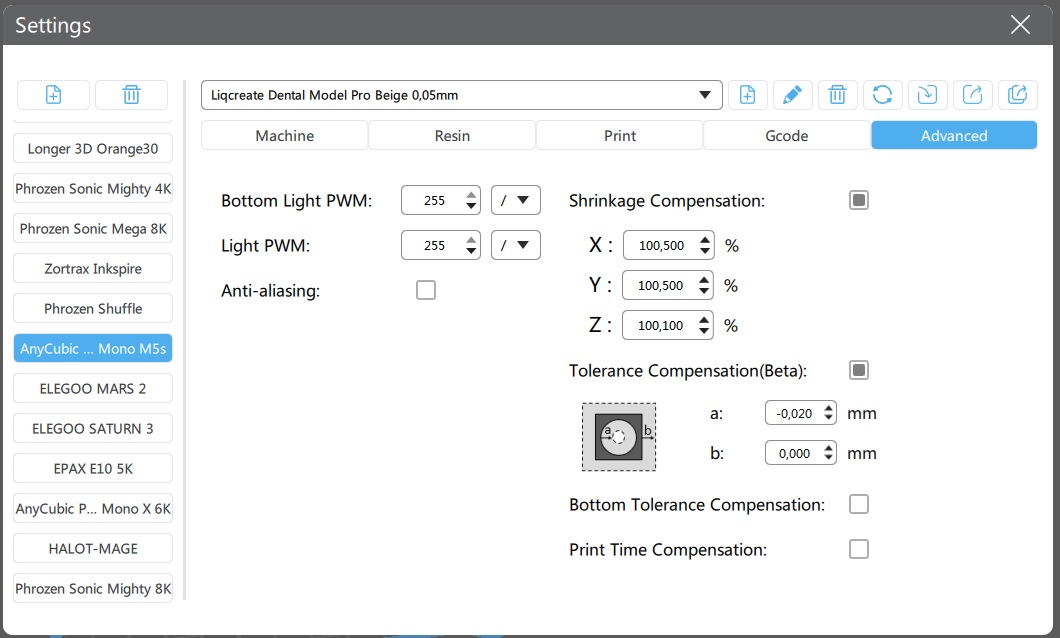

Anycubic Photon Mono M5s parameters for accurate dental models.
The Anycubic Photon Mono M5s resin 3D-printer.
Image by Anycubic: The new Anycubic Photon Mono M5s resin 3D-printer.
3D-printer specifications: Anycubic Photon Mono M5s.
| Photon Mono M5 | Photon Mono M5s | |
| Device Size | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 270 x 290 x 460 mm | |
| Net Weight | 8.6 kg | 8.9 kg |
| Build Volume | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 218 x 123 x 200 mm | |
| LCD-Display + Resolution | Â Â Â Â Â Â Â Â Â 12K 10-1-inch Monochrome LCD | |
| XY-Resolution |                   19 x 24 µm | |
| Light Source | Â Â Â Â Â Â Â Â Â LED Matrix UV-Light Source | |
| Screen Protector | Â Â Â Â Â Â Â Â Â Â Swappable Scratchproof Film | |
| Levelling | Manual 4-Point Levelling | Levelling Free |
| Print Speed | 20–50 mm/h | Standard-Resin 70 mm/h High-Speed Resin 105 mm/h |
| Build Plate | Â Â Â Â Â Â Â Â Â Â Â Â Laser Engraved Build Platform | |
| Z-Axis | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Dual Linear Rails | |
| Printer Display | Â Â Â Â Â Â Â Â Â Â Â 4.3-inch TFT-Touchscreen | |
| Data Transfer | Â Â Â Â Â Â Â Â Â Â Â Â Â Â WiFi, USB (Typ-A 2.0) | |
If you have any questions related to Liqcreate 3D-printing resins on the Anycubic Photon Mono M5s or other resin based 3D-printer. Send us an e-mail at info@liqcreate.com.
